Ultra Slim Bifold Doors Dubai
20mm Frames - 95% Glass, 5% Frame

Finalize all specifications before manufacturing begins. Review detailed specifications: exact panel dimensions and count (odd vs even panel configurations affect operation and aesthetics), frame system choice (Schuco ASS 77 vs Reynaers CF 77—we explain differences honestly), sightline width selection (20mm, 25mm, 28mm, or 35mm—narrower = more premium but higher cost), glass type and thickness (6mm tempered double glazing standard, 8mm triple option, laminated security options), Low-E coating specification (critical for Dubai—70-75% solar heat reflection while maintaining clarity), frame finish (200+ RAL powder-coat colors, wood-grain options, dual-color interior/exterior), hardware finish (chrome, brushed nickel, black, gold—matching property fixtures), threshold type (standard track, low-profile, barrier-free flush options), weatherseal configuration (standard compression seals, enhanced for coastal properties). For motorized systems: specify opener type (chain drive vs linear actuator), control method (wall switch, remote, smartphone app, home automation integration), safety sensors and auto-reverse features. Structural verification if needed: engineer confirms opening structure adequate for ultra-slim system weight and operational forces, floor levelness verified (corrective measures identified if needed), lintel capacity confirmed for header loads. Approve complete specification document and timeline. Timeline: 2-4 days review and revisions.

German precision fabrication and rigorous quality control. Manufacturing process for ultra-slim systems: (1) High-strength aluminium extrusion cutting using CNC machinery (±0.2mm tolerance—tighter than standard bifolds). (2) Frame assembly with precision welding or mechanical corner joints (stress testing ensures strength despite slim profiles). (3) Internal reinforcement installation (multi-chamber design providing rigidity without width). (4) Thermal break integration (24-34mm polyamide breaks blocking heat transfer). (5) Surface preparation: degreasing, etching, pre-treatment for powder coating. (6) Powder coating application (electrostatic coating, high-temperature curing—UV and weather resistant for Dubai climate). (7) Dual-color application if specified (masking and second coating process). (8) Precision machining for hardware mounting (CNC drilling ensuring perfect hinge and roller placement—critical for slim profiles where tolerances minimal). (9) Glass fabrication: cutting, edge polishing, tempering (heating to 700°C then rapid cooling creating safety glass), Low-E coating application, argon gas fill for insulated units, edge sealing with premium silicone. (10) Panel assembly: glass installation into frames, weatherseal fitting, hardware mounting (stainless steel hinges designed for slim profiles, precision rollers with soft-close mechanisms). (11) Quality inspection: dimensional verification (every panel measured against specifications), operation testing (hinge function, roller smoothness, alignment), surface quality check, weatherseal integrity verification. Each panel individually tested before shipping. Protective packaging for transport. Timeline: 3-4 weeks standard ultra-slim systems, 5-6 weeks for large custom configurations or special finishes.

Critical site preparation ensuring perfect conditions for ultra-slim installation. Opening preparation sequence: (1) Remove existing doors/windows if retrofit project (careful extraction, disposal or storage as requested). (2) Opening inspection and verification: measure actual opening dimensions versus specifications (identify any discrepancies requiring correction), check opening square (diagonal measurements equal within 1mm—critical for ultra-slim), verify floor level (within 2mm across entire opening—more critical than standard bifolds because slim frames cannot compensate for unlevel conditions), confirm jambs plumb (vertical within 1mm—tight tolerance for proper panel alignment). (3) Corrective work if needed: floor leveling using self-leveling compound or shims (must be perfectly level for smooth operation), jamb adjustment or shimming achieving vertical alignment, structural reinforcement if needed (lintel support, jamb strengthening). (4) Opening preparation: clean thoroughly removing construction debris, seal substrate preventing moisture issues, prime surfaces for weatherproofing adhesion. (5) Track installation—critical phase: position bottom track perfectly level and straight (laser level used for precision—any deviation causes binding), secure to floor using appropriate anchors for substrate type (concrete, tile, wood), weatherproof track perimeter with premium sealants, test track for smoothness (no high spots or debris). (6) Head track installation: mount to header aligned precisely with bottom track (vertical laser alignment ensuring perfect parallel), secure to structure with adequate spacing for panel weight, verify clearances for panel operation. (7) Jamb frame installation: fit side frames ensuring plumb and square, weatherseal around perimeter, verify adequate clearance for panels. Site protection: heavy floor coverings, wall guards, workspace organization. Timeline: 1-2 days for prepared openings, 2-4 days if corrections needed.

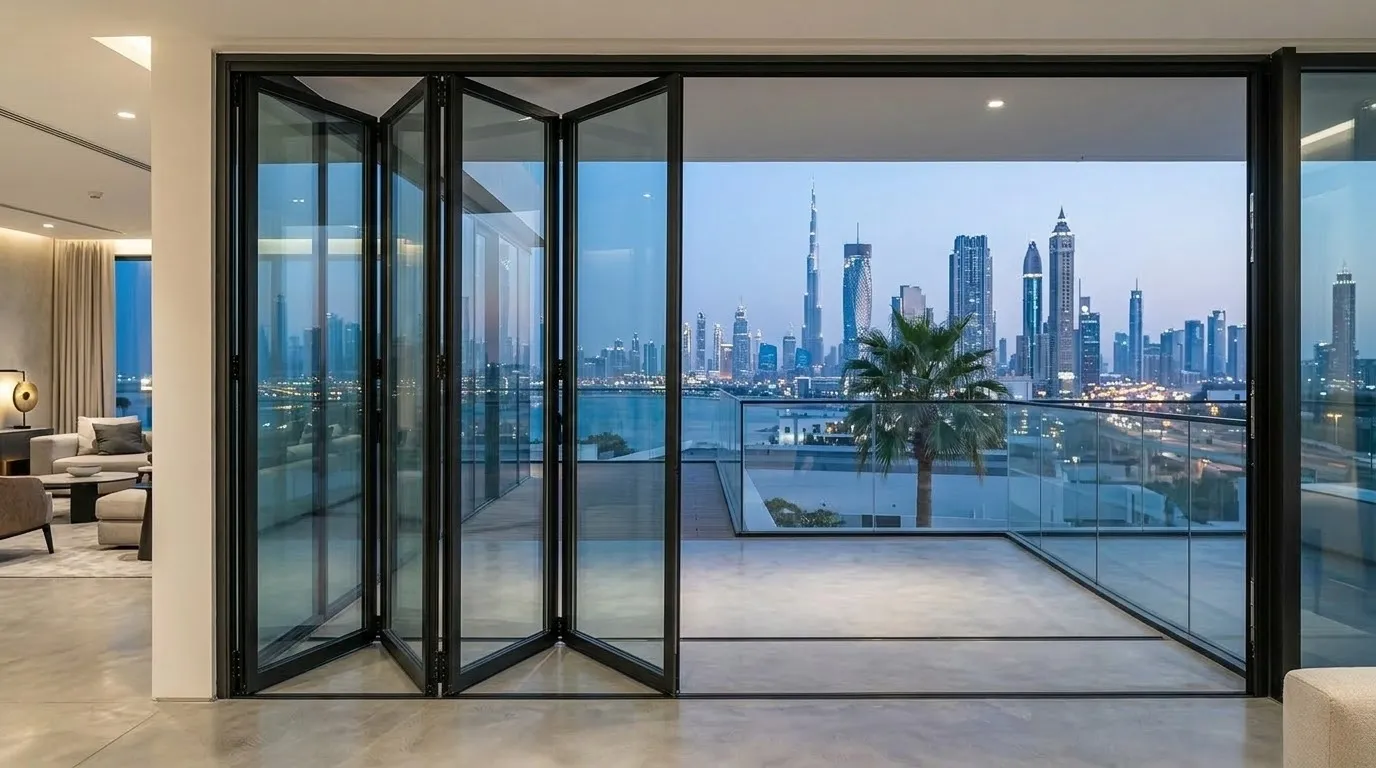

Expert panel installation and meticulous alignment. Installation sequence optimized for ultra-slim systems: (1) Fixed panel installation if configuration includes fixed elements: position carefully using suction lifters (prevents glass stress), secure to jambs and head with structural fasteners, weatherseal around perimeter, verify perfect vertical alignment. (2) First operable panel installation: carefully position rollers onto bottom track, engage top guide into head track, adjust roller height for proper clearance (typically 3-5mm gap from floor), verify panel hangs perfectly vertical. (3) Subsequent panel installation: hang each panel in sequence working from fixed end toward operating end, interlock hinges between adjacent panels (precision alignment critical for slim profiles), adjust each panel for perfect vertical before proceeding. (4) Inter-panel alignment—most critical phase for ultra-slim: adjust roller heights achieving perfectly flush alignment when closed (panels must align within 0.5mm for aesthetic appearance), set hinge tension for smooth operation (too loose = rattle, too tight = binding), verify even gaps between panels (uniform 2-3mm spacing when closed), check seals compress properly when closed. (5) Operation testing: open and close complete system 10+ times checking smooth movement, verify panels stack compactly against jamb when fully open, check magnetic catches or latches engage properly, test throughout operational arc for binding or resistance. (6) Final adjustment and fine-tuning: micro-adjust rollers achieving perfect alignment, adjust soft-close mechanisms for smooth deceleration, set final tension on hinges, verify all panels perfectly vertical when closed creating seamless glass wall appearance. (7) Hardware installation: fit handles at ergonomic height, install locks (multi-point locking engaging at top and bottom), fit any additional hardware (finger pulls, flush bolts for fixed panels). (8) Weatherseal verification: check compression when panels closed (proper seal engagement critical for energy performance), verify no light gaps visible, test with smoke pencil if specified (checking air infiltration). Quality check: aesthetics (uniform gaps, flush alignment, clean appearance), operation (smooth, silent, effortless throughout arc), security (locks engage positively, panels resist forced opening). Timeline: 6-9 hours depending on panel count and complexity.

Comprehensive quality verification and client training. Final testing protocol: (1) Operational testing: open and close complete system 30+ times verifying consistent smooth operation, test individual panel operation (each should move independently without affecting others), verify stacking works properly (panels fold compactly when fully open), check soft-close mechanisms function throughout operation. (2) Alignment verification: inspect panel alignment when closed (must be perfectly flush creating seamless appearance—critical aesthetic requirement for ultra-slim), check uniform gaps between panels (2-3mm consistent spacing), verify no bowing or warping visible, confirm panels perfectly vertical using precision level. (3) Weatherseal performance: close system and inspect seal compression around entire perimeter, check for light penetration through gaps (none should be visible), test with smoke pencil if exterior installation (verifying air-tightness). (4) Locking system verification: test multi-point locks engage smoothly at all points, verify security (panels resist forced opening when locked), check lock alignment and operation from interior and exterior. (5) Load testing: apply moderate pressure at various points checking structural integrity, verify no flex or movement beyond normal, check all hardware secure and not loosening. (6) Aesthetic inspection: clean all glass surfaces removing installation marks, verify frame finish quality (no scratches, dents, or defects), check hardware finish and alignment, inspect weatherseals for proper installation and appearance. (7) Final adjustment round: make any micro-adjustments needed for perfect operation, verify all components meeting specifications, confirm complete system performs flawlessly. Client training comprehensive: demonstrate proper operation technique (how to open, close, lock), explain care and maintenance requirements (cleaning, lubrication schedule), show weatherseal inspection and care, discuss what to monitor (operation smoothness, alignment, seals), explain when to call for service, smart system programming if motorized. Documentation provided: warranty registration and certificates, complete system specifications, maintenance schedule and procedures, troubleshooting guide, parts list and ordering information, emergency contact details. Final walkthrough: you personally operate system multiple times, we answer all questions, you approve all aspects before final payment. Follow-up: annual maintenance visit included first year for inspection, adjustment, lubrication, seal check. Timeline: 2-3 hours comprehensive testing, training, and documentation. Total project completion: 6-7 weeks from initial consultation to final handover.
